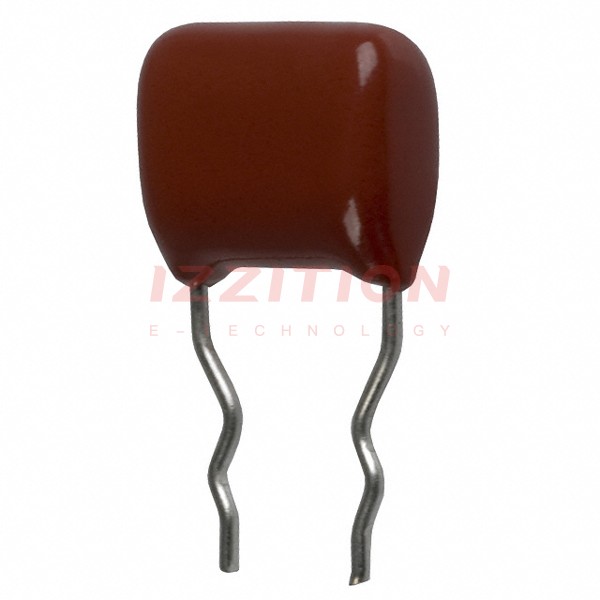

| Part Number | ECQ-P1H912FZW | ECQ-P1H913FZW | ECQ-P1H512FZW |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 9100 pF | 0.091 µF | 5100 pF |
| Tolerance | ±1% | ±1% | ±1% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.472" L x 0.197" W (12.00mm x 5.00mm) | 0.669" L x 0.276" W (17.00mm x 7.00mm) | 0.335" L x 0.177" W (8.50mm x 4.50mm) |
| Height - Seated (Max) | 0.532" (13.50mm) | 0.748" (19.00mm) | 0.512" (13.00mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
