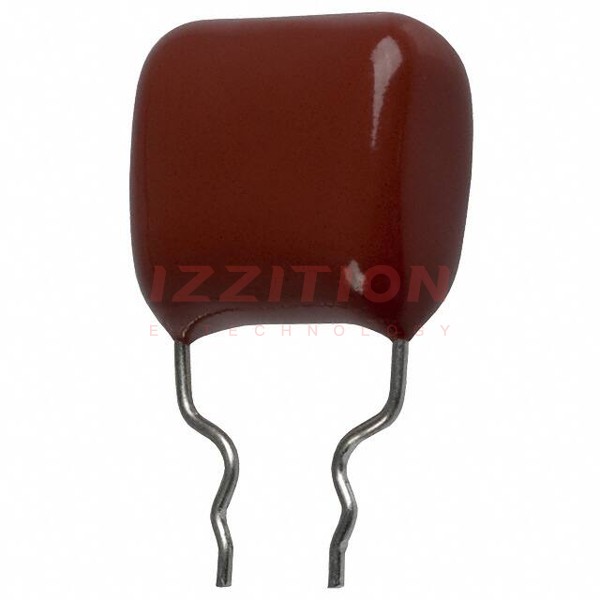

| Part Number | ECQ-P1H683GZW | ECQ-P1H183GZW | ECQ-P1H682GZW | ECQ-P1H683FZW | ECQ-P1H683GZ |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.068 µF | 0.018 µF | 6800 pF | 0.068 µF | 0.068 µF |
| Tolerance | ±2% | ±2% | ±2% | ±1% | ±2% |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.571" L x 0.276" W (14.50mm x 7.00mm) | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.335" L x 0.197" W (8.50mm x 5.00mm) | 0.571" L x 0.276" W (14.50mm x 7.00mm) | 0.571" L x 0.276" W (14.50mm x 7.00mm) |
| Height - Seated (Max) | 0.748" (19.00mm) | 0.571" (14.50mm) | 0.512" (13.00mm) | 0.748" (19.00mm) | 0.748" (19.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
