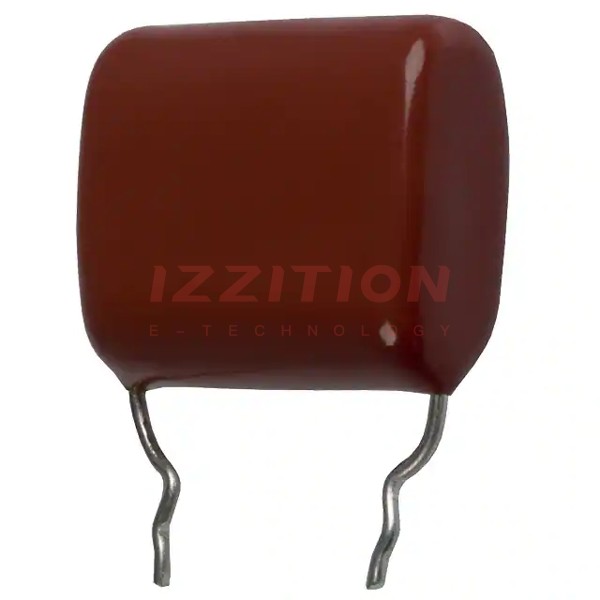

| Part Number | ECQ-P1H394GZW | ECQ-P1H334GZW | ECQ-P1H392GZW | ECQ-P1H393GZW | ECQ-P1H394FZW | ECQ-P1H394GZ |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.39 µF | 0.33 µF | 3900 pF | 0.039 µF | 0.39 µF | 0.39 µF |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±1% | ±2% |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.886" L x 0.433" W (22.50mm x 11.00mm) | 0.886" L x 0.394" W (22.50mm x 10.00mm) | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.571" L x 0.217" W (14.50mm x 5.50mm) | 0.886" L x 0.433" W (22.50mm x 11.00mm) | 0.886" L x 0.433" W (22.50mm x 11.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) | 0.965" (24.50mm) | 0.492" (12.50mm) | 0.669" (17.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
