Please send RFQ , we will respond immediately.

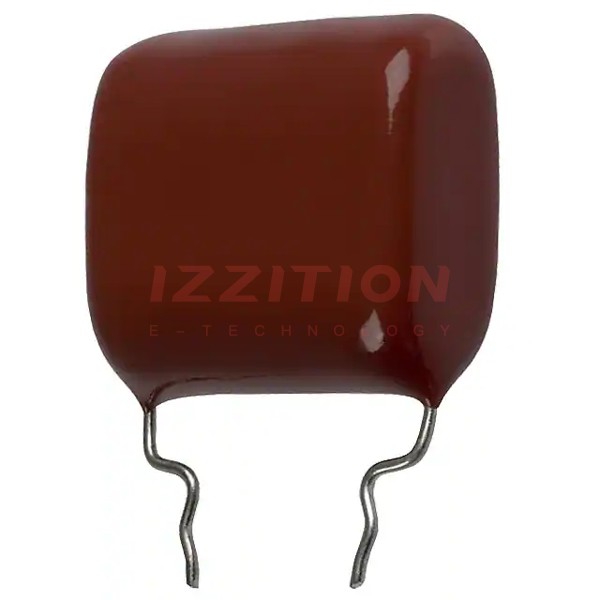

| Part Number | ECQ-P1H274FZW | ECQ-P1H474FZW | ECQ-P1H274GZW | ECQ-P1H204FZW | ECQ-P1H224FZW | ECQ-P1H244FZW | ECQ-P1H272FZW | ECQ-P1H273FZW |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.27 µF | 0.47 µF | 0.27 µF | 0.2 µF | 0.22 µF | 0.24 µF | 2700 pF | 0.027 µF |
| Tolerance | ±1% | ±1% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.787" L x 0.413" W (20.00mm x 10.50mm) | 0.886" L x 0.472" W (22.50mm x 12.00mm) | 0.787" L x 0.413" W (20.00mm x 10.50mm) | 0.787" L x 0.374" W (20.00mm x 9.50mm) | 0.787" L x 0.374" W (20.00mm x 9.50mm) | 0.787" L x 0.394" W (20.00mm x 10.00mm) | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
| Height - Seated (Max) | 0.906" (23.00mm) | 1.024" (26.00mm) | 0.906" (23.00mm) | 0.846" (21.50mm) | 0.866" (22.00mm) | 0.886" (22.50mm) | 0.492" (12.50mm) | 0.630" (16.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.492" (12.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
