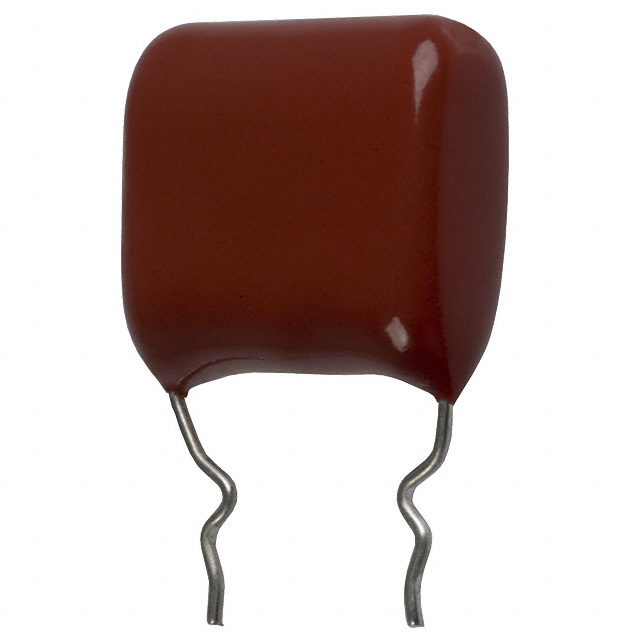

| Part Number | ECQ-P1H124FZW | ECQ-P1H134FZW | ECQ-P1H154FZW | ECQ-P1H164FZW | ECQ-P1H184FZW | ECQ-P1H224FZW | ECQ-P1H124GZW | ECQ-P1H104FZW | ECQ-P1H114FZW | ECQ-P1H122FZW | ECQ-P1H123FZW |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.12 µF | 0.13 µF | 0.15 µF | 0.16 µF | 0.18 µF | 0.22 µF | 0.12 µF | 0.1 µF | 0.11 µF | 1200 pF | 0.012 µF |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±2% | ±1% | ±1% | ±1% | ±1% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.669" L x 0.335" W (17.00mm x 8.50mm) | 0.669" L x 0.335" W (17.00mm x 8.50mm) | 0.787" L x 0.315" W (20.00mm x 8.00mm) | 0.787" L x 0.335" W (20.00mm x 8.50mm) | 0.787" L x 0.354" W (20.00mm x 9.00mm) | 0.787" L x 0.374" W (20.00mm x 9.50mm) | 0.669" L x 0.335" W (17.00mm x 8.50mm) | 0.669" L x 0.295" W (17.00mm x 7.50mm) | 0.669" L x 0.315" W (17.00mm x 8.00mm) | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
| Height - Seated (Max) | 0.807" (20.50mm) | 0.827" (21.00mm) | 0.807" (20.50mm) | 0.807" (20.50mm) | 0.827" (21.00mm) | 0.866" (22.00mm) | 0.807" (20.50mm) | 0.768" (19.50mm) | 0.807" (20.50mm) | 0.492" (12.50mm) | 0.551" (14.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - |
