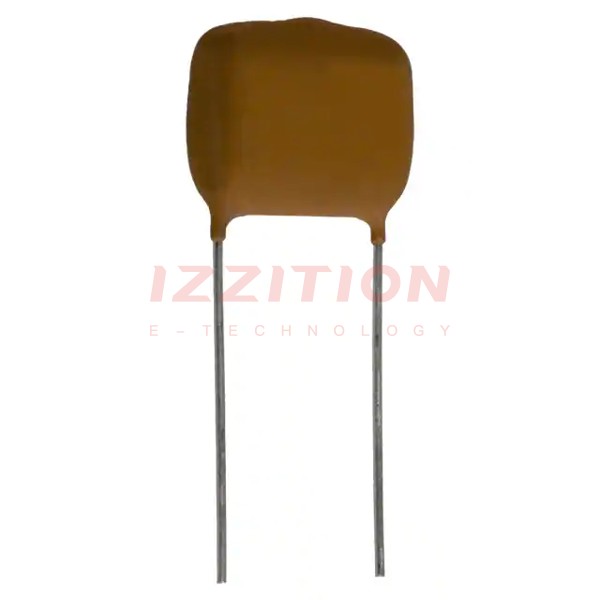

| Part Number | ECQ-M4473KZ | ECQ-M2473KZ | ECQ-M4273KZ | ECQ-M4472KZ |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.047 µF | 0.047 µF | 0.027 µF | 4700 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 400V | 200V | 400V | 400V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.787" L x 0.354" W (20.00mm x 9.00mm) | - | 0.787" L x 0.276" W (20.00mm x 7.00mm) | 0.551" L x 0.236" W (14.00mm x 6.00mm) |
| Height - Seated (Max) | 0.768" (19.50mm) | - | 0.689" (17.50mm) | 0.472" (12.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.374" (9.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
