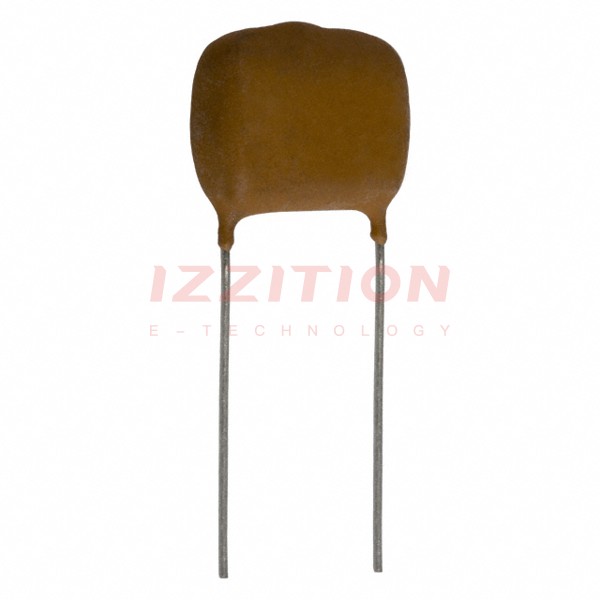

| Part Number | ECQ-M4393KZ | ECQ-M2393KZ | ECQ-M4333KZ | ECQ-M4392KZ |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.039 µF | 0.039 µF | 0.033 µF | 3900 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 400V | 200V | 400V | 400V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.787" L x 0.335" W (20.00mm x 8.50mm) | - | 0.787" L x 0.295" W (20.00mm x 7.50mm) | 0.472" L x 0.256" W (12.00mm x 6.50mm) |
| Height - Seated (Max) | 0.748" (19.00mm) | - | 0.709" (18.00mm) | 0.492" (12.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
