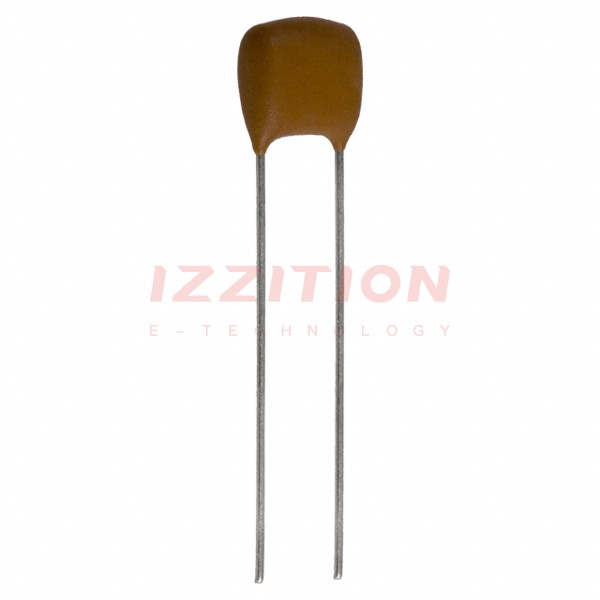

| Part Number | ECQ-M4102KZ | ECQ-M4122KZ | ECQ-M4152KZ | ECQ-M4182KZ | ECQ-M4103KZ | ECQ-M4104KZ | ECQ-M2102KZ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 pF | 1200 pF | 1500 pF | 1800 pF | 10000 pF | 0.1 µF | 1000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | - | - |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 200V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.433" L x 0.217" W (11.00mm x 5.50mm) | 0.433" L x 0.236" W (11.00mm x 6.00mm) | 0.433" L x 0.236" W (11.00mm x 6.00mm) | 0.433" L x 0.236" W (11.00mm x 6.00mm) | 0.551" L x 0.276" W (14.00mm x 7.00mm) | 0.945" L x 0.394" W (24.00mm x 10.00mm) | - |
| Height - Seated (Max) | 0.382" (9.70mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.610" (15.50mm) | 0.866" (22.00mm) | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.374" (9.50mm) | 0.709" (18.00mm) | 0.217" (5.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
