Please send RFQ , we will respond immediately.

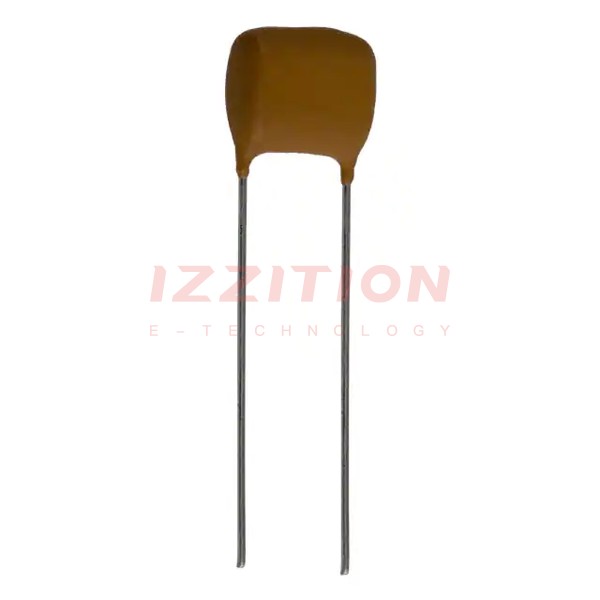

| Part Number | ECQ-M2822KZ | ECQ-M2823KZ | ECQ-M4822KZ | ECQ-M2122KZ | ECQ-M2222KZ |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 8200 pF | 0.082 µF | 8200 pF | 1200 pF | 2200 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 200V | 200V | 400V | 200V | 200V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | - | - | 0.551" L x 0.256" W (14.00mm x 6.50mm) | - | - |
| Height - Seated (Max) | - | - | 0.591" (15.00mm) | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.374" (9.50mm) | 0.591" (15.00mm) | 0.374" (9.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
