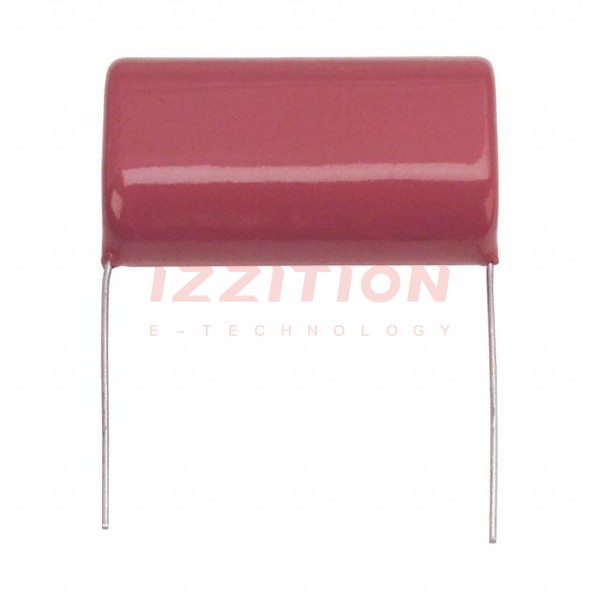

| Part Number | ECQ-E6824KZ | ECQ-E6823KZ | ECQ-E6824KF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Active |
| Capacitance | 0.82 µF | 0.082 µF | 0.82 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | 250V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.673" L x 0.512" W (42.50mm x 13.00mm) | 0.650" L x 0.315" W (16.50mm x 8.00mm) | 1.220" L x 0.445" W (31.00mm x 11.30mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.669" (17.00mm) | 0.846" (21.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.516" (38.50mm) | 0.531" (13.50mm) | 1.083" (27.50mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
