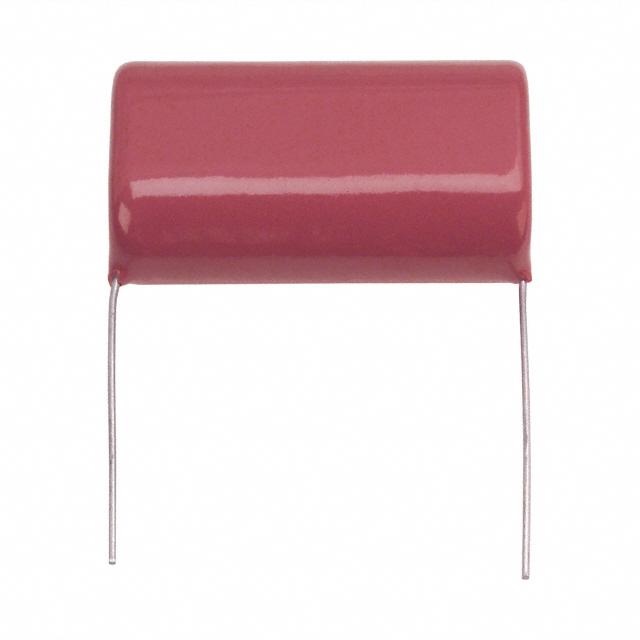

| Part Number | ECQ-E6684KZ | ECQ-E6683KZ | ECQ-E6684KF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Active |
| Capacitance | 0.68 µF | 0.068 µF | 0.68 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | 250V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.673" L x 0.472" W (42.50mm x 12.00mm) | 0.650" L x 0.295" W (16.50mm x 7.50mm) | 1.024" L x 0.453" W (26.00mm x 11.50mm) |
| Height - Seated (Max) | 0.807" (20.50mm) | 0.630" (16.00mm) | 0.866" (22.00mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.516" (38.50mm) | 0.531" (13.50mm) | 0.886" (22.50mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
