Please send RFQ , we will respond immediately.

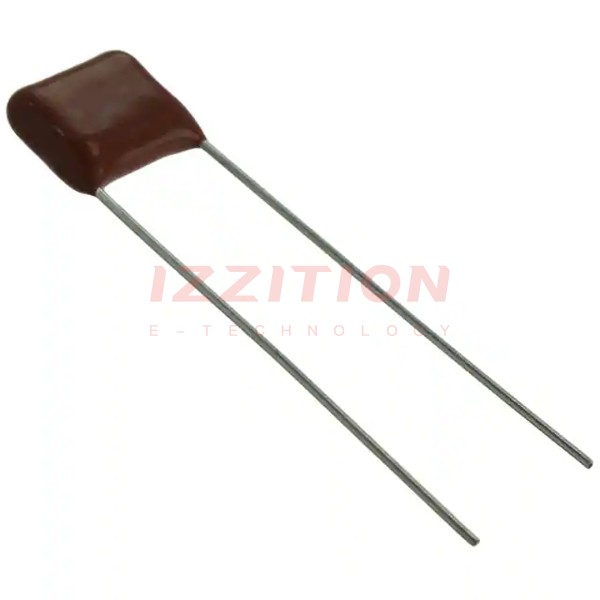

| Part Number | ECQ-E6392JF | ECQ-E6393JF | ECQ-E6394JF | ECQ-E6392KF | ECQ-E6332JF |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 3900 pF | 0.039 µF | 0.39 µF | 3900 pF | 3300 pF |
| Tolerance | ±5% | ±5% | ±5% | ±10% | ±5% |
| Voltage Rating - AC | 250V | 250V | 250V | - | - |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.394" L x 0.177" W (10.00mm x 4.50mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.567" (14.40mm) | 0.744" (18.90mm) | 0.433" (11.00mm) | 0.394" (10.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.886" (22.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
