Please send RFQ , we will respond immediately.

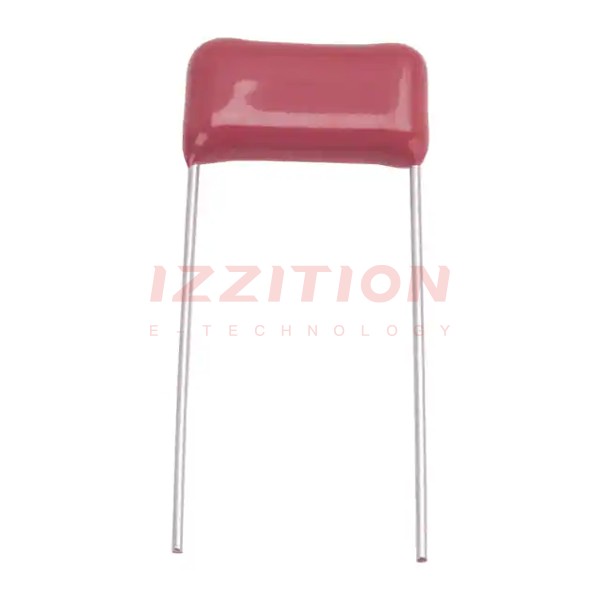

| Part Number | ECQ-E6333KZ | ECQ-E6393KZ | ECQ-E6334KZ | ECQ-E6333KF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Capacitance | 0.033 µF | 0.039 µF | 0.33 µF | 0.033 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | 250V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.650" L x 0.217" W (16.50mm x 5.50mm) | 0.650" L x 0.236" W (16.50mm x 6.00mm) | 1.142" L x 0.413" W (29.00mm x 10.50mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.748" (19.00mm) | 0.508" (12.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.531" (13.50mm) | 0.531" (13.50mm) | 1.004" (25.50mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
