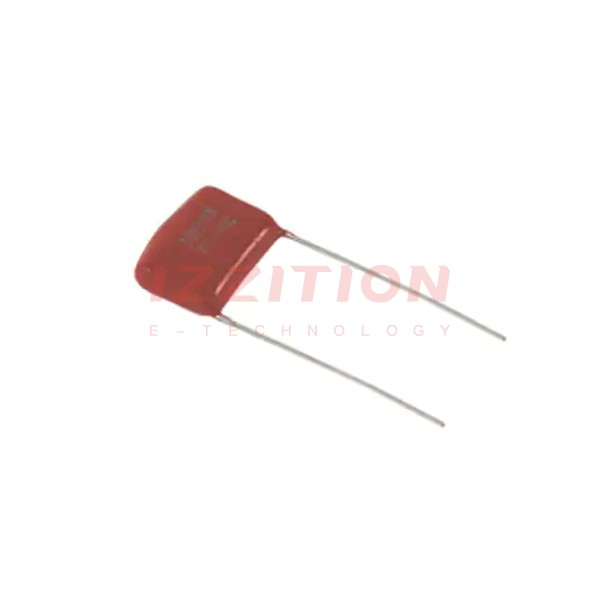

| Part Number | ECQ-E6332JF | ECQ-E6392JF | ECQ-E6334JF | ECQ-E6333JF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 3300 pF | 3900 pF | 0.33 µF | 0.033 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | 250V | 250V | 250V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 1.024" L x 0.307" W (26.00mm x 7.80mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.433" (11.00mm) | 0.709" (18.00mm) | 0.508" (12.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.886" (22.50mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
