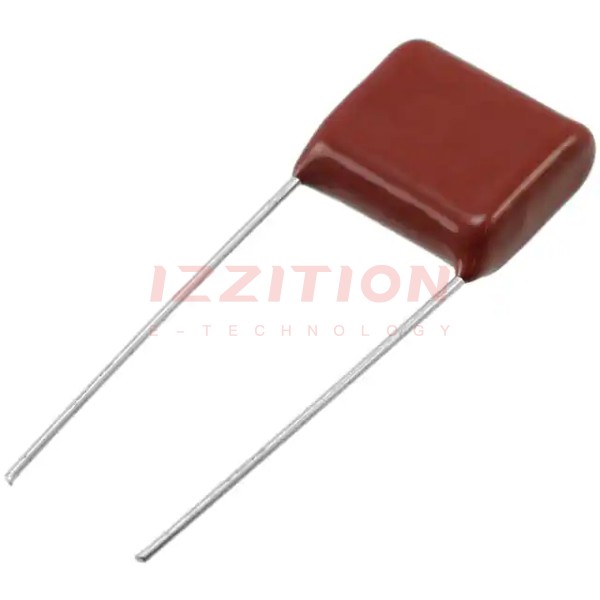

| Part Number | ECQ-E6224KF | ECQ-E6274KF | ECQ-E6225KF | ECQ-E6224KFB | ECQ-E6224KFW | ECQ-E6224KF3 | ECQ-E6224RKF | ECQ-E6224KZ | ECQ-E6124KF | ECQ-E6222KF | ECQ-E6223KF | ECQ-E6224JF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.27 µF | 2.2 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.12 µF | 2200 pF | 0.022 µF | 0.22 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 250V | 250V | 250V | - | - | - | - | - | 250V | - | 250V | 250V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 1.220" L x 0.768" W (31.00mm x 19.50mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 1.142" L x 0.335" W (29.00mm x 8.50mm) | 0.728" L x 0.248" W (18.50mm x 6.30mm) | - | 0.472" L x 0.209" W (12.00mm x 5.30mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.689" (17.50mm) | 1.181" (30.00mm) | 0.846" (21.50mm) | 0.846" (21.50mm) | 0.846" (21.50mm) | 0.846" (21.50mm) | 0.689" (17.50mm) | 0.610" (15.50mm) | - | 0.453" (11.50mm) | 0.689" (17.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.886" (22.50mm) | 1.083" (27.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 1.004" (25.50mm) | 0.591" (15.00mm) | - | 0.394" (10.00mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
