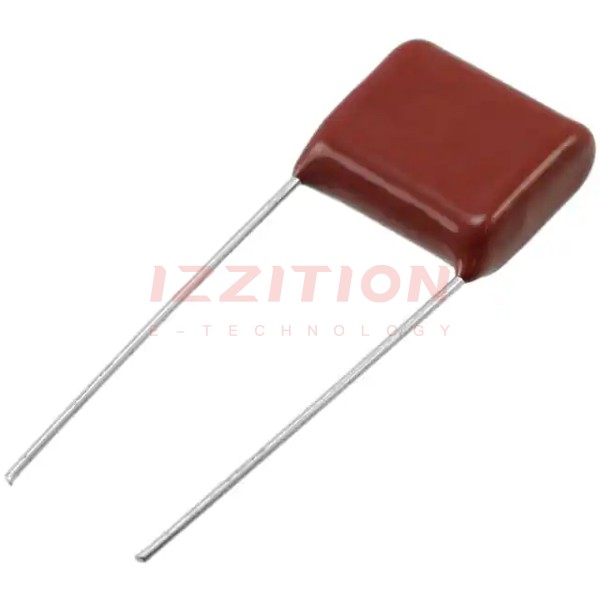

| Part Number | ECQ-E6224JF | ECQ-E6274JF | ECQ-E6224KF | ECQ-E6225JF | ECQ-E6224JFB | ECQ-E6224JFW | ECQ-E6224RJF | ECQ-E6224JF3 | ECQ-E6124JF | ECQ-E6222JF | ECQ-E6223JF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.27 µF | 0.22 µF | 2.2 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.12 µF | 2200 pF | 0.022 µF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 250V | 250V | 250V | 250V | - | - | - | - | 250V | - | 250V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 1.220" L x 0.768" W (31.00mm x 19.50mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" L x 0.248" W (18.50mm x 6.30mm) | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.472" L x 0.209" W (12.00mm x 5.30mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 1.201" (30.50mm) | 0.846" (21.50mm) | 0.846" (21.50mm) | 0.846" (21.50mm) | 0.846" (21.50mm) | 0.610" (15.50mm) | 0.394" (10.00mm) | 0.453" (11.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 1.083" (27.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.197" (5.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - |
