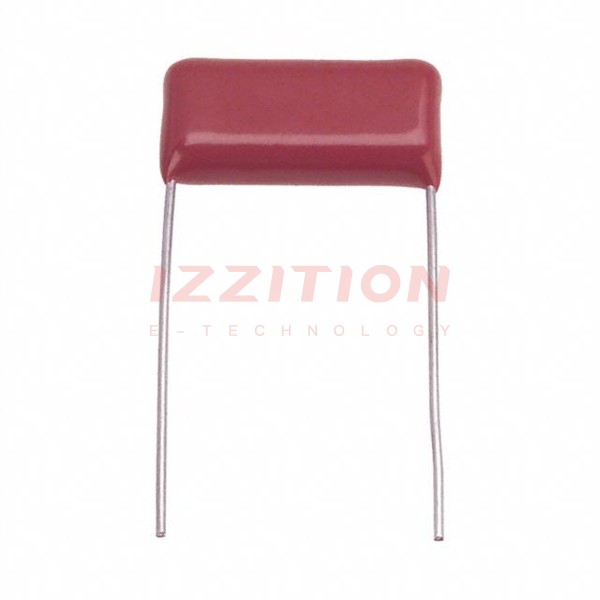

| Part Number | ECQ-E6154KZ | ECQ-E6155KZ | ECQ-E6184KZ | ECQ-E6104KZ | ECQ-E6124KZ | ECQ-E6153KZ | ECQ-E6154KF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Capacitance | 0.15 µF | 1.5 µF | 0.18 µF | 0.1 µF | 0.12 µF | 0.015 µF | 0.15 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | - | 250V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.945" L x 0.315" W (24.00mm x 8.00mm) | 1.673" L x 0.669" W (42.50mm x 17.00mm) | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.945" L x 0.256" W (24.00mm x 6.50mm) | 0.945" L x 0.295" W (24.00mm x 7.50mm) | 0.531" L x 0.217" W (13.50mm x 5.50mm) | 0.728" L x 0.295" W (18.50mm x 7.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 1.102" (28.00mm) | 0.689" (17.50mm) | 0.591" (15.00mm) | 0.630" (16.00mm) | 0.453" (11.50mm) | 0.646" (16.40mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.807" (20.50mm) | 1.516" (38.50mm) | 0.807" (20.50mm) | 0.807" (20.50mm) | 0.807" (20.50mm) | 0.413" (10.50mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
