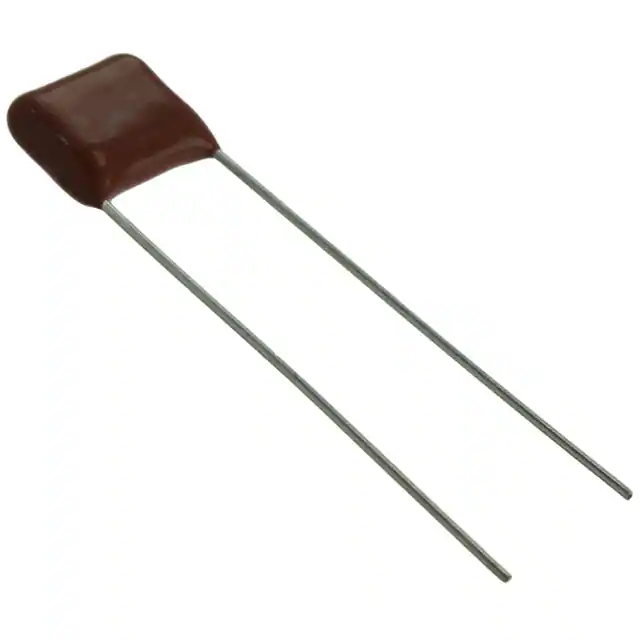

| Part Number | ECQ-E6152JF | ECQ-E6153JF | ECQ-E6155JF | ECQ-E6154JF | ECQ-E6102JF |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1500 pF | 0.015 µF | 1.5 µF | 0.15 µF | 1000 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 250V | 250V | 250V | 250V | - |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.472" L x 0.197" W (12.00mm x 5.00mm) | 1.220" L x 0.602" W (31.00mm x 15.30mm) | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.394" L x 0.177" W (10.00mm x 4.50mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.362" (9.20mm) | 1.032" (26.20mm) | 0.646" (16.40mm) | 0.374" (9.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.394" (10.00mm) | 1.083" (27.50mm) | 0.591" (15.00mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
