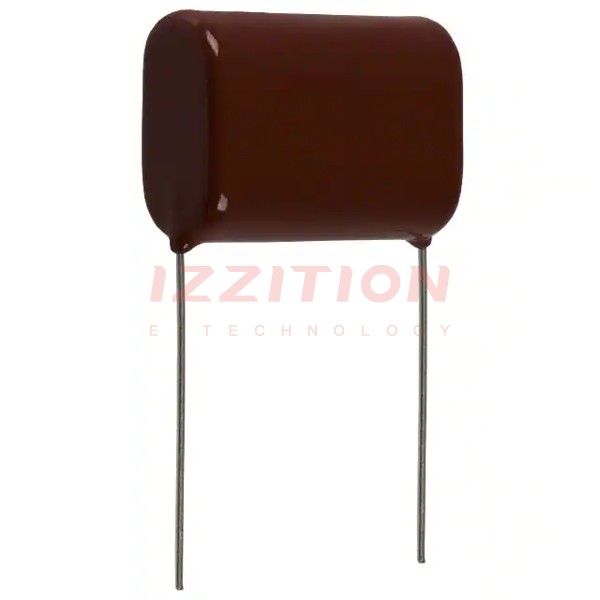

| Part Number | ECQ-E6125JF | ECQ-E6125KF | ECQ-E6185JF | ECQ-E6155JF | ECQ-E6225JF | ECQ-E6125JFW | ECQ-E6125JFB | ECQ-E6105JF | ECQ-E6123JF | ECQ-E6124JF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1.2 µF | 1.2 µF | 1.8 µF | 1.5 µF | 2.2 µF | 1.2 µF | 1.2 µF | 1 µF | 0.012 µF | 0.12 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 250V | 250V | 250V | 250V | 250V | - | - | 250V | 250V | 250V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.220" L x 0.531" W (31.00mm x 13.50mm) | 1.220" L x 0.531" W (31.00mm x 13.50mm) | 1.220" L x 0.661" W (31.00mm x 16.80mm) | 1.220" L x 0.602" W (31.00mm x 15.30mm) | 1.220" L x 0.768" W (31.00mm x 19.50mm) | 1.220" L x 0.531" W (31.00mm x 13.50mm) | 1.220" L x 0.531" W (31.00mm x 13.50mm) | 1.220" L x 0.492" W (31.00mm x 12.50mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.728" L x 0.248" W (18.50mm x 6.30mm) |
| Height - Seated (Max) | 0.965" (24.50mm) | 0.945" (24.00mm) | 1.122" (28.50mm) | 1.032" (26.20mm) | 1.201" (30.50mm) | 1.102" (28.00mm) | 1.102" (28.00mm) | 0.921" (23.40mm) | 0.346" (8.80mm) | 0.610" (15.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 1.083" (27.50mm) | 0.394" (10.00mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
