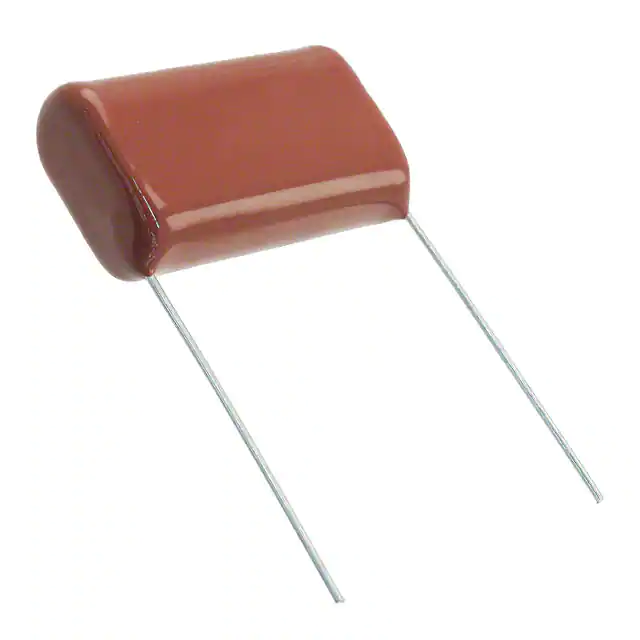

| Part Number | ECQ-E6105JFW | ECQ-E6105KFW | ECQ-E6125JFW | ECQ-E6155JFW | ECQ-E6185JFW | ECQ-E6103JFW | ECQ-E6104JFW | ECQ-E6105JF | ECQ-E6105JFB |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1.2 µF | 1.5 µF | 1.8 µF | 10000 pF | 0.1 µF | 1 µF | 1 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | 250V | - |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.220" L x 0.492" W (31.00mm x 12.50mm) | 1.220" L x 0.492" W (31.00mm x 12.50mm) | 1.220" L x 0.531" W (31.00mm x 13.50mm) | 1.220" L x 0.602" W (31.00mm x 15.30mm) | 1.220" L x 0.661" W (31.00mm x 16.80mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.728" L x 0.248" W (18.50mm x 6.30mm) | 1.220" L x 0.492" W (31.00mm x 12.50mm) | 1.220" L x 0.492" W (31.00mm x 12.50mm) |
| Height - Seated (Max) | 1.059" (26.90mm) | 1.059" (26.90mm) | 1.102" (28.00mm) | 1.169" (29.70mm) | 1.260" (32.00mm) | 0.492" (12.50mm) | 0.748" (19.00mm) | 0.921" (23.40mm) | 1.059" (26.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 1.083" (27.50mm) | 0.886" (22.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
