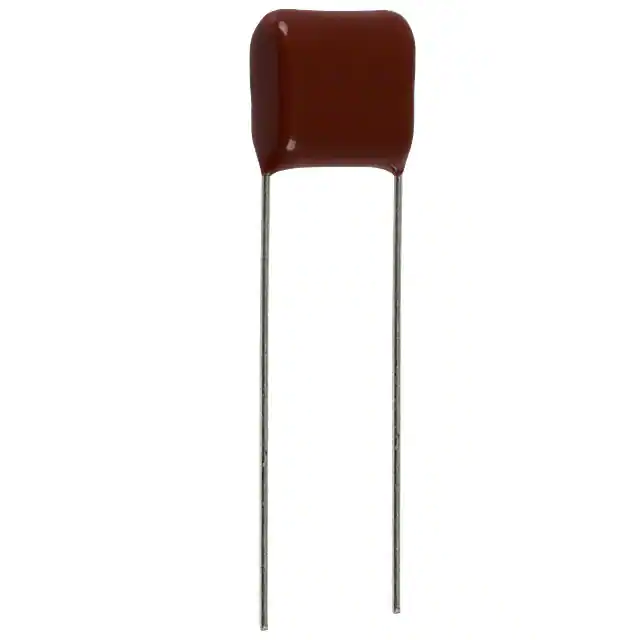

| Part Number | ECQ-E6103KF | ECQ-E6153KF | ECQ-E6183KF | ECQ-E6103KF9 | ECQ-E6104KF | ECQ-E6105KF | ECQ-E6103KF3 | ECQ-E6103KFB | ECQ-E6103KFW | ECQ-E6103RKF | ECQ-E6123KF | ECQ-E6103KZ | ECQ-E6103JF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Capacitance | 10000 pF | 0.015 µF | 0.018 µF | 10000 pF | 0.1 µF | 1 µF | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 0.012 µF | 10000 pF | 10000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 250V | 250V | 250V | - | 250V | 250V | - | - | - | - | - | - | 250V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.472" L x 0.197" W (12.00mm x 5.00mm) | 0.472" L x 0.193" W (12.00mm x 4.90mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.728" L x 0.248" W (18.50mm x 6.30mm) | 1.220" L x 0.492" W (31.00mm x 12.50mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.531" L x 0.197" W (13.50mm x 5.00mm) | 0.472" L x 0.177" W (12.00mm x 4.50mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.362" (9.20mm) | 0.433" (11.00mm) | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.902" (22.90mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.346" (8.80mm) | 0.354" (9.00mm) | 0.335" (8.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.591" (15.00mm) | 1.083" (27.50mm) | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.413" (10.50mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
