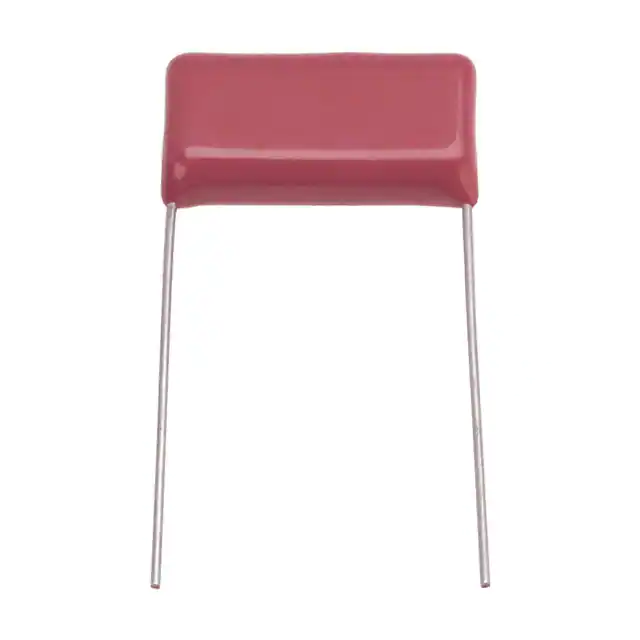

| Part Number | ECQ-E4824KZ | ECQ-E4823KZ | ECQ-E4824KF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Active |
| Capacitance | 0.82 µF | 0.082 µF | 0.82 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | 200V |
| Voltage Rating - DC | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.142" L x 0.492" W (29.00mm x 12.50mm) | 0.650" L x 0.276" W (16.50mm x 7.00mm) | 1.024" L x 0.311" W (26.00mm x 7.90mm) |
| Height - Seated (Max) | 0.846" (21.50mm) | 0.532" (13.50mm) | 0.720" (18.30mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.004" (25.50mm) | 0.531" (13.50mm) | 0.886" (22.50mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
