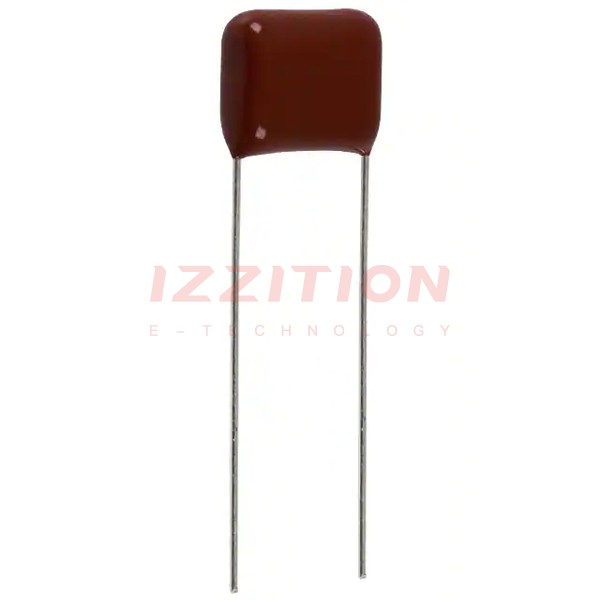

| Part Number | ECQ-E4823KFW | ECQ-E4824KFW | ECQ-E4823JFW | ECQ-E4823KF | ECQ-E4823KF3 | ECQ-E4823KF9 | ECQ-E4823KFB |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.082 µF | 0.82 µF | 0.082 µF | 0.082 µF | 0.082 µF | 0.082 µF | 0.082 µF |
| Tolerance | ±10% | ±10% | ±5% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | 200V | - | - | - |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.472" L x 0.228" W (12.00mm x 5.80mm) | 1.024" L x 0.311" W (26.00mm x 7.90mm) | 0.472" L x 0.228" W (12.00mm x 5.80mm) | 0.472" L x 0.228" W (12.00mm x 5.80mm) | 0.472" L x 0.228" W (12.00mm x 5.80mm) | 0.472" L x 0.228" W (12.00mm x 5.80mm) | 0.472" L x 0.228" W (12.00mm x 5.80mm) |
| Height - Seated (Max) | 0.630" (16.00mm) | 0.878" (22.30mm) | 0.630" (16.00mm) | 0.472" (12.00mm) | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.630" (16.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
