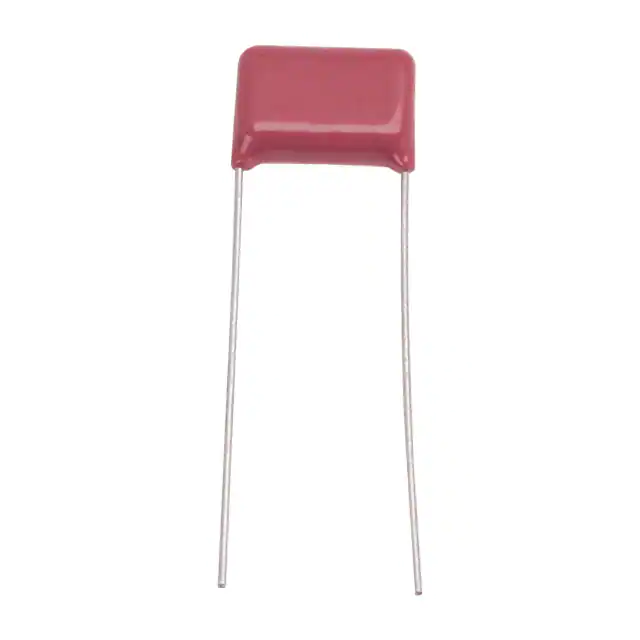

| Part Number | ECQ-E4473KZ | ECQ-E4474KZ | ECQ-E4273KZ | ECQ-E4473KF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Capacitance | 0.047 µF | 0.47 µF | 0.027 µF | 0.047 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | 200V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.531" L x 0.256" W (13.50mm x 6.50mm) | 1.142" L x 0.354" W (29.00mm x 9.00mm) | 0.531" L x 0.197" W (13.50mm x 5.00mm) | 0.472" L x 0.197" W (12.00mm x 5.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.709" (18.00mm) | 0.453" (11.50mm) | 0.366" (9.30mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.413" (10.50mm) | 1.004" (25.50mm) | 0.413" (10.50mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
