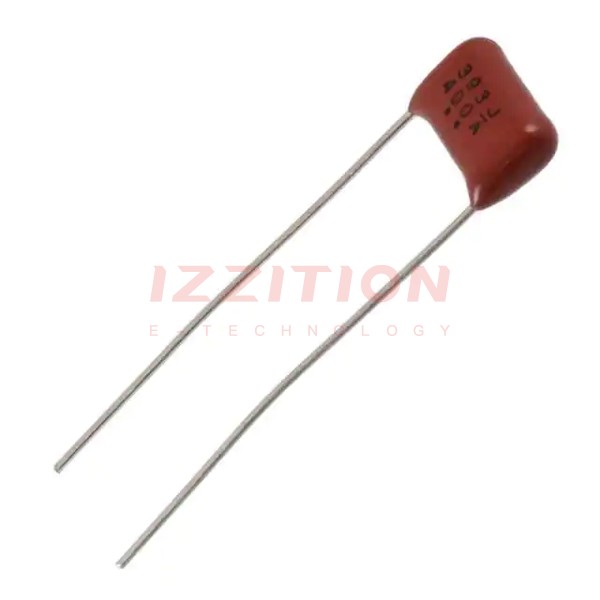

| Part Number | ECQ-E4393JF | ECQ-E4394JF | ECQ-E4393KF | ECQ-E4333JF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.039 µF | 0.39 µF | 0.039 µF | 0.033 µF |
| Tolerance | ±5% | ±5% | ±10% | ±5% |
| Voltage Rating - AC | 200V | 200V | 200V | 200V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.472" L x 0.193" W (12.00mm x 4.90mm) | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.472" L x 0.193" W (12.00mm x 4.90mm) | 0.406" L x 0.236" W (10.30mm x 6.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.646" (16.40mm) | 0.354" (9.00mm) | 0.394" (10.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
