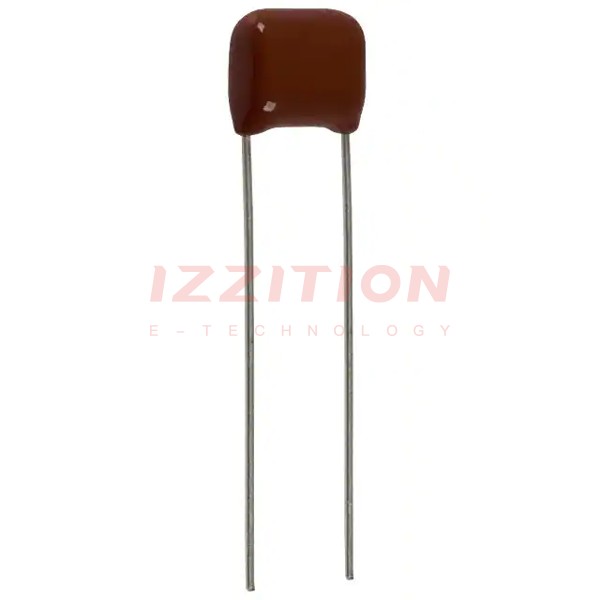

| Part Number | ECQ-E4333JF9 | ECQ-E4333JFW | ECQ-E4333KF9 | ECQ-E4333JF | ECQ-E4333JF3 |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.033 µF | 0.033 µF | 0.033 µF | 0.033 µF | 0.033 µF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | 200V | - |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.406" L x 0.236" W (10.30mm x 6.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.394" (10.00mm) | 0.551" (14.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
