Please send RFQ , we will respond immediately.

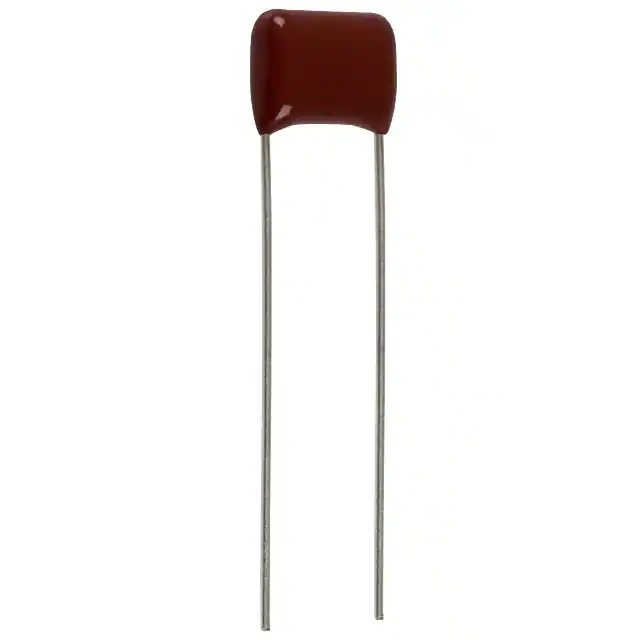

| Part Number | ECQ-E4273KFW | ECQ-E4274KFW | ECQ-E4273JFW | ECQ-E4273KF | ECQ-E4273KF3 | ECQ-E4273KF9 | ECQ-E4273KFB |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.027 µF | 0.27 µF | 0.027 µF | 0.027 µF | 0.027 µF | 0.027 µF | 0.027 µF |
| Tolerance | ±10% | ±10% | ±5% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | 200V | - | - | - |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.406" L x 0.217" W (10.30mm x 5.50mm) | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.406" L x 0.217" W (10.30mm x 5.50mm) | 0.406" L x 0.217" W (10.30mm x 5.50mm) | 0.406" L x 0.217" W (10.30mm x 5.50mm) | 0.406" L x 0.217" W (10.30mm x 5.50mm) | 0.406" L x 0.217" W (10.30mm x 5.50mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.760" (19.30mm) | 0.512" (13.00mm) | 0.354" (9.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
