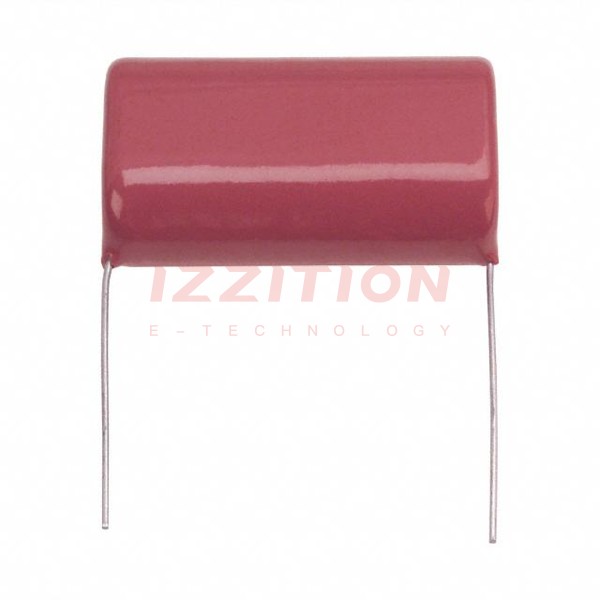

| Part Number | ECQ-E4225KZ | ECQ-E4125KZ | ECQ-E4223KZ | ECQ-E4224KZ | ECQ-E4225KF |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Capacitance | 2.2 µF | 1.2 µF | 0.022 µF | 0.22 µF | 2.2 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | 200V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.673" L x 0.591" W (42.50mm x 15.00mm) | 1.142" L x 0.571" W (29.00mm x 14.50mm) | 0.531" L x 0.197" W (13.50mm x 5.00mm) | 0.945" L x 0.295" W (24.00mm x 7.50mm) | 1.220" L x 0.433" W (31.00mm x 11.00mm) |
| Height - Seated (Max) | 1.004" (25.50mm) | 0.984" (25.00mm) | 0.433" (11.00mm) | 0.630" (16.00mm) | 0.906" (23.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.516" (38.50mm) | 1.004" (25.50mm) | 0.413" (10.50mm) | 0.807" (20.50mm) | 1.083" (27.50mm) |
| Applications | General Purpose | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
