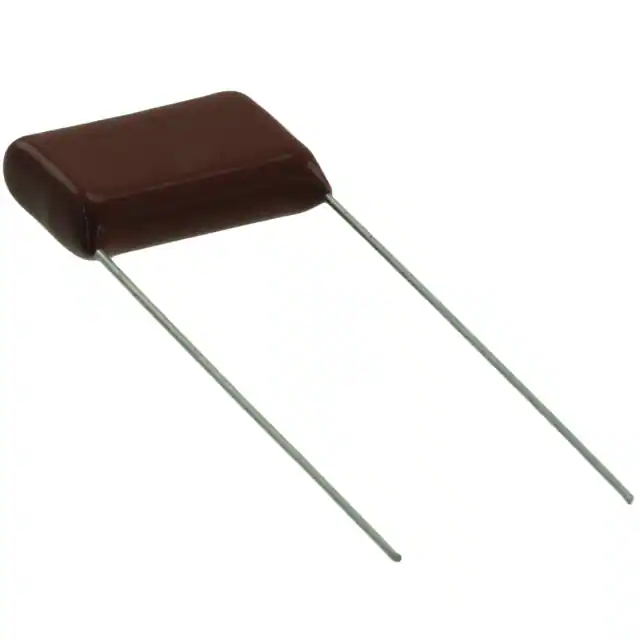

| Part Number | ECQ-E4224JF | ECQ-E4225JF | ECQ-E4224KF | ECQ-E4274JF | ECQ-E4224JFB | ECQ-E4224JFW | ECQ-E4224JF3 | ECQ-E4224RJF | ECQ-E4124JF | ECQ-E4223JF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 2.2 µF | 0.22 µF | 0.27 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.12 µF | 0.022 µF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 200V | 200V | 200V | 200V | - | - | - | - | 200V | 200V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.406" L x 0.189" W (10.30mm x 4.80mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.925" (23.50mm) | 0.551" (14.00mm) | 0.602" (15.30mm) | 0.709" (18.00mm) | 0.709" (18.00mm) | 0.709" (18.00mm) | 0.709" (18.00mm) | 0.433" (11.00mm) | 0.350" (8.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 1.083" (27.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
