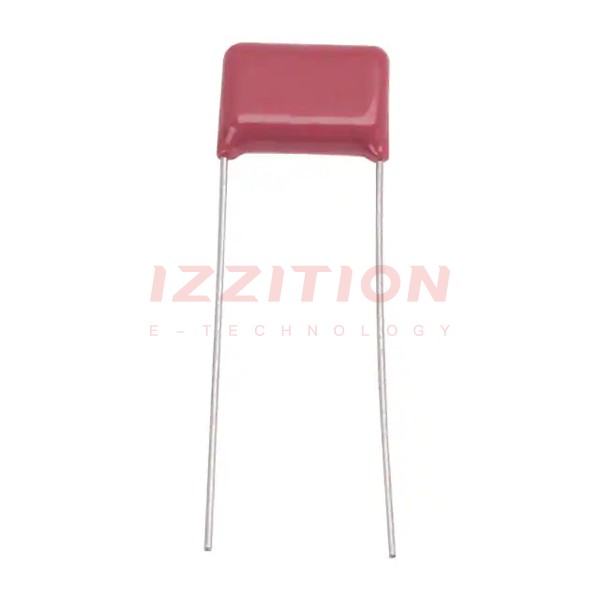

| Part Number | ECQ-E4183KZ | ECQ-E4185KZ | ECQ-E4184KZ | ECQ-E4103KZ | ECQ-E4123KZ | ECQ-E4153KZ | ECQ-E4183KF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Capacitance | 0.018 µF | 1.8 µF | 0.18 µF | 10000 pF | 0.012 µF | 0.015 µF | 0.018 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | - | 200V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.531" L x 0.197" W (13.50mm x 5.00mm) | 1.673" L x 0.531" W (42.50mm x 13.50mm) | 0.650" L x 0.354" W (16.50mm x 9.00mm) | 0.531" L x 0.177" W (13.50mm x 4.50mm) | 0.531" L x 0.197" W (13.50mm x 5.00mm) | 0.531" L x 0.177" W (13.50mm x 4.50mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.945" (24.00mm) | 0.689" (17.50mm) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.335" (8.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.413" (10.50mm) | 1.516" (38.50mm) | 0.531" (13.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.295" (7.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | General Purpose | General Purpose | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
