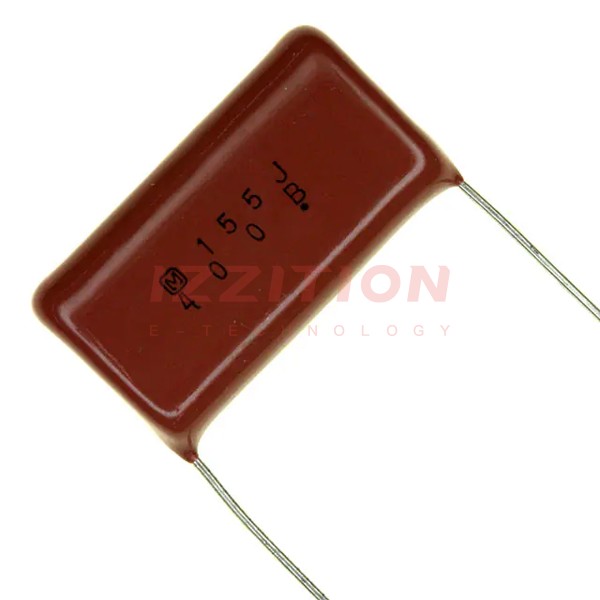

| Part Number | ECQ-E4155KFW | ECQ-E4185KFW | ECQ-E4105KFW | ECQ-E4125KFW | ECQ-E4153KFW | ECQ-E4154KFW | ECQ-E4155JFW | ECQ-E4155KF | ECQ-E4155KFB |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1.5 µF | 1.8 µF | 1 µF | 1.2 µF | 0.015 µF | 0.15 µF | 1.5 µF | 1.5 µF | 1.5 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | - | - | 200V | - |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.220" L x 0.374" W (31.00mm x 9.50mm) | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 1.024" L x 0.374" W (26.00mm x 9.50mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 1.220" L x 0.374" W (31.00mm x 9.50mm) | 1.220" L x 0.374" W (31.00mm x 9.50mm) | 1.220" L x 0.374" W (31.00mm x 9.50mm) |
| Height - Seated (Max) | 0.945" (24.00mm) | 1.004" (25.50mm) | 0.906" (23.00mm) | 0.941" (23.90mm) | 0.492" (12.50mm) | 0.685" (17.40mm) | 0.945" (24.00mm) | 0.787" (20.00mm) | 0.945" (24.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.886" (22.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
