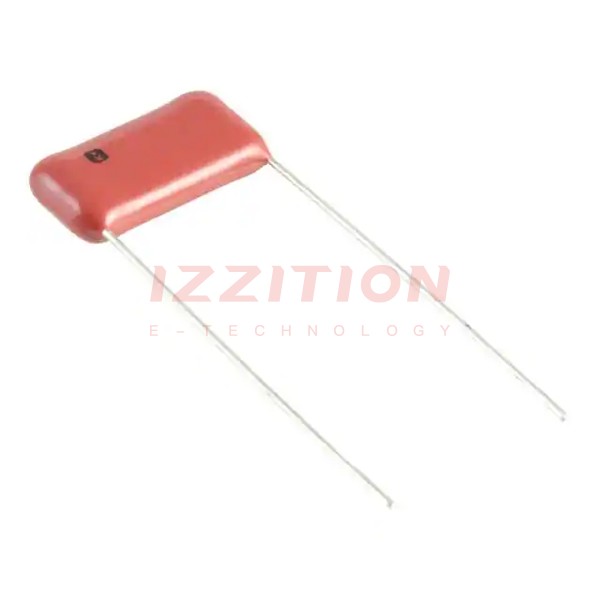

| Part Number | ECQ-E4154KFW | ECQ-E4184KFW | ECQ-E4155KFW | ECQ-E4124KFW | ECQ-E4153KFW | ECQ-E4154JFW | ECQ-E4154KF | ECQ-E4154KF3 | ECQ-E4154KFB |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.15 µF | 0.18 µF | 1.5 µF | 0.12 µF | 0.015 µF | 0.15 µF | 0.15 µF | 0.15 µF | 0.15 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | - | 200V | - | - |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.728" L x 0.213" W (18.50mm x 5.40mm) | 1.220" L x 0.374" W (31.00mm x 9.50mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) |
| Height - Seated (Max) | 0.685" (17.40mm) | 0.689" (17.50mm) | 0.945" (24.00mm) | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.685" (17.40mm) | 0.528" (13.40mm) | 0.685" (17.40mm) | 0.685" (17.40mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.886" (22.50mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
