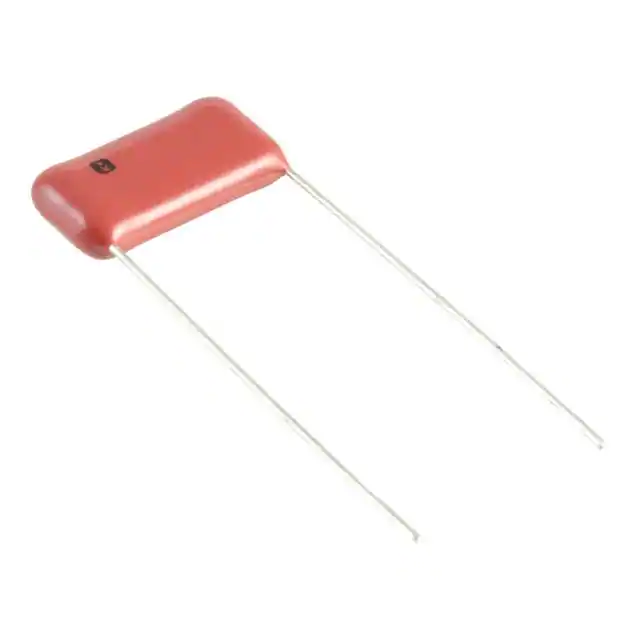

| Part Number | ECQ-E4124KF | ECQ-E4224KF | ECQ-E4184KF | ECQ-E4154KF | ECQ-E4125KF | ECQ-E4124KFB | ECQ-E4124KFW | ECQ-E4124KF3 | ECQ-E4124RKF | ECQ-E4124KZ | ECQ-E4104KF | ECQ-E4123KF | ECQ-E4124JF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Capacitance | 0.12 µF | 0.22 µF | 0.18 µF | 0.15 µF | 1.2 µF | 0.12 µF | 0.12 µF | 0.12 µF | 0.12 µF | 0.12 µF | 0.1 µF | 0.012 µF | 0.12 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 200V | 200V | 200V | 200V | 200V | - | - | - | - | - | 200V | 200V | 200V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 0.728" L x 0.213" W (18.50mm x 5.40mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 1.024" L x 0.374" W (26.00mm x 9.50mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.650" L x 0.295" W (16.50mm x 7.50mm) | 0.472" L x 0.248" W (12.00mm x 6.30mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.551" (14.00mm) | 0.532" (13.50mm) | 0.528" (13.40mm) | 0.783" (19.90mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.630" (16.00mm) | 0.512" (13.00mm) | 0.335" (8.50mm) | 0.433" (11.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.591" (15.00mm) | 0.531" (13.50mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
