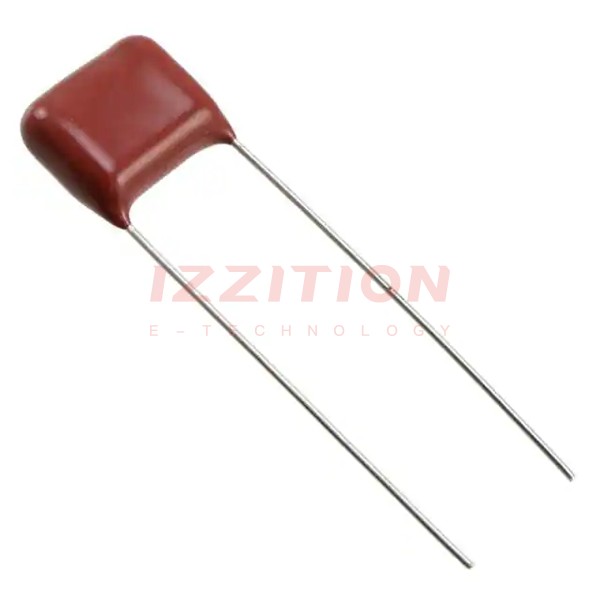

| Part Number | ECQ-E4104JF | ECQ-E4104KF | ECQ-E4124JF | ECQ-E4154JF | ECQ-E4184JF | ECQ-E4105JF | ECQ-E4103JF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.12 µF | 0.15 µF | 0.18 µF | 1 µF | 10000 pF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 200V | 200V | 200V | 200V | 200V | 200V | 200V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.472" L x 0.248" W (12.00mm x 6.30mm) | 0.472" L x 0.248" W (12.00mm x 6.30mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.728" L x 0.213" W (18.50mm x 5.40mm) | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.406" L x 0.169" W (10.30mm x 4.30mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.433" (11.00mm) | 0.528" (13.40mm) | 0.532" (13.50mm) | 0.748" (19.00mm) | 0.331" (8.40mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
