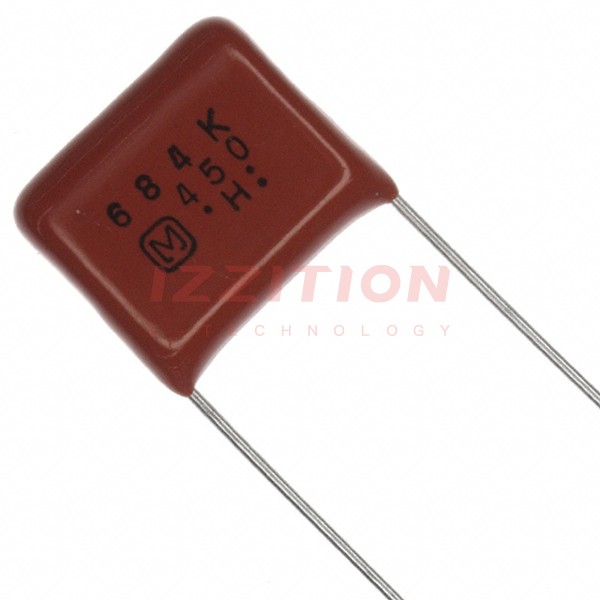

| Part Number | ECQ-E2W684KH | ECQ-E2W684KC |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Obsolete |
| Capacitance | 0.68 µF | 0.68 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | - | - |
| Voltage Rating - DC | 450V | 450V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.717" L x 0.272" W (18.20mm x 6.90mm) | 1.004" L x 0.413" W (25.50mm x 10.50mm) |
| Height - Seated (Max) | 0.642" (16.30mm) | 0.807" (20.50mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression | General Purpose |
| Ratings | - | - |
| Features | - | - |
