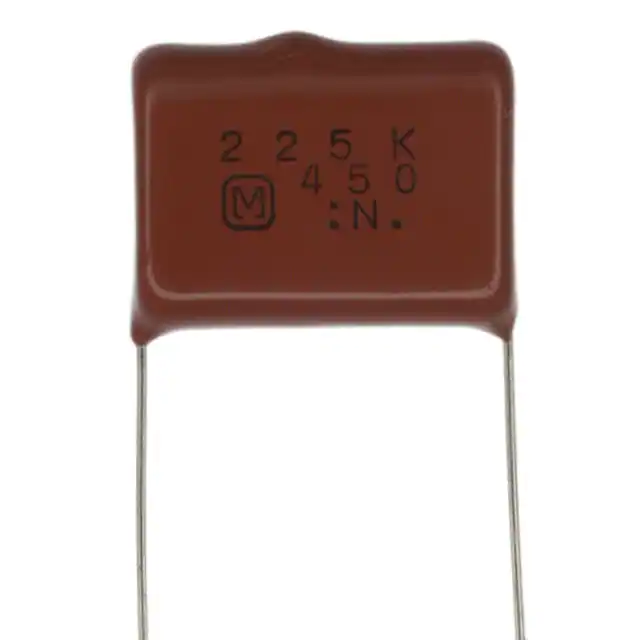

| Part Number | ECQ-E2W225KH | ECQ-E2W225KC |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Obsolete |
| Capacitance | 2.2 µF | 2.2 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | - | - |
| Voltage Rating - DC | 450V | 450V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.012" L x 0.370" W (25.70mm x 9.40mm) | 1.220" L x 0.551" W (31.00mm x 14.00mm) |
| Height - Seated (Max) | 0.815" (20.70mm) | 0.984" (25.00mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 1.083" (27.50mm) |
| Applications | EMI, RFI Suppression | General Purpose |
| Ratings | - | - |
| Features | - | - |
