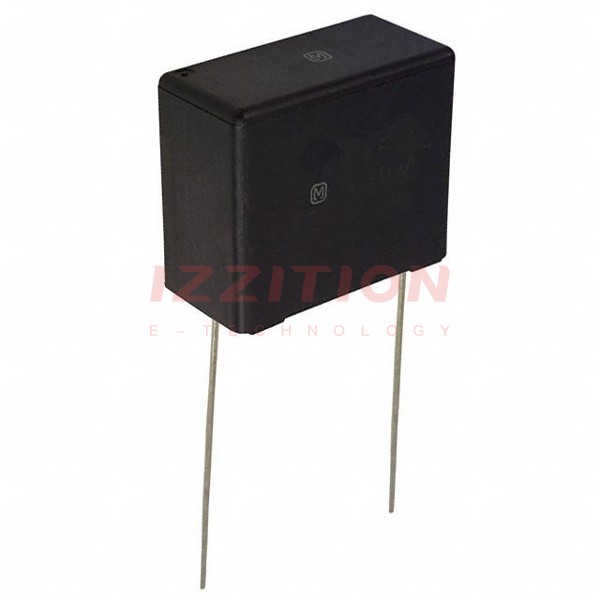

| Part Number | ECQ-E2W105KC | ECQ-E2W105KH | ECQ-E2W155KC | ECQ-E2W104KC |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Capacitance | 1 µF | 1 µF | 1.5 µF | 0.1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 450V | 450V | 450V | 450V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.004" L x 0.492" W (25.50mm x 12.50mm) | 0.717" L x 0.335" W (18.20mm x 8.50mm) | 1.004" L x 0.610" W (25.50mm x 15.50mm) | 0.728" L x 0.217" W (18.50mm x 5.50mm) |
| Height - Seated (Max) | 0.886" (22.50mm) | 0.705" (17.90mm) | 0.984" (25.00mm) | 0.591" (15.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.591" (15.00mm) |
| Applications | General Purpose | EMI, RFI Suppression | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
