Please send RFQ , we will respond immediately.

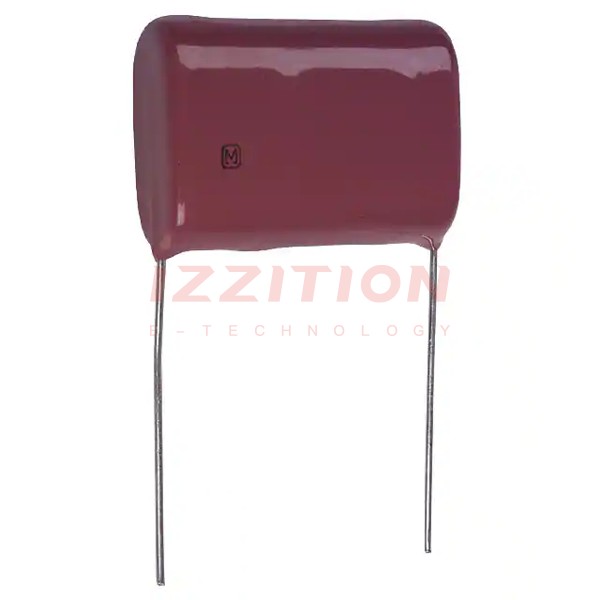

| Part Number | ECQ-E2825JFW | ECQ-E2825KFW | ECQ-E2824JFW | ECQ-E2825JF | ECQ-E2825JFB |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 8.2 µF | 8.2 µF | 0.82 µF | 8.2 µF | 8.2 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | 150V | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.220" L x 0.563" W (31.00mm x 14.30mm) | 1.220" L x 0.563" W (31.00mm x 14.30mm) | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 1.220" L x 0.563" W (31.00mm x 14.30mm) | 1.220" L x 0.563" W (31.00mm x 14.30mm) |
| Height - Seated (Max) | 1.122" (28.50mm) | 1.122" (28.50mm) | 0.768" (19.50mm) | 0.984" (25.00mm) | 1.122" (28.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.394" (10.00mm) | 1.083" (27.50mm) | 0.886" (22.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
