Please send RFQ , we will respond immediately.

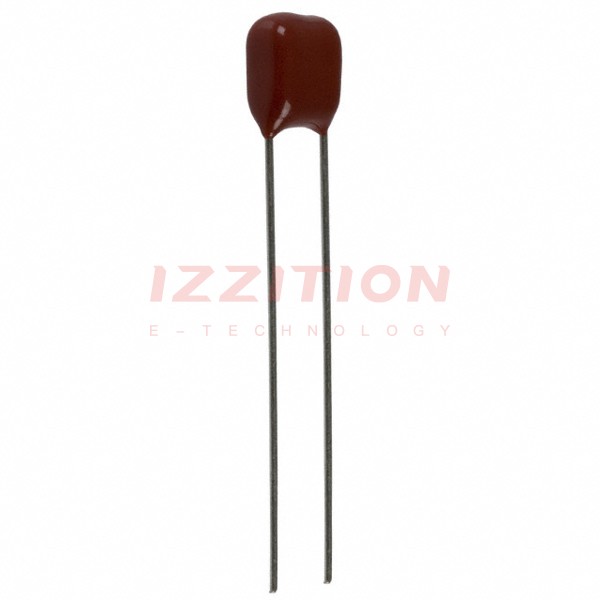

| Part Number | ECQ-E2823JBB | ECQ-E2823KBB | ECQ-E2824JBB | ECQ-E2823JB | ECQ-E2823JB3 |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.082 µF | 0.082 µF | 0.82 µF | 0.082 µF | 0.082 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | 125V | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.311" L x 0.213" W (7.90mm x 5.40mm) | 0.311" L x 0.213" W (7.90mm x 5.40mm) | 0.602" L x 0.248" W (15.30mm x 6.30mm) | 0.311" L x 0.213" W (7.90mm x 5.40mm) | 0.311" L x 0.213" W (7.90mm x 5.40mm) |
| Height - Seated (Max) | 0.535" (13.60mm) | 0.535" (13.60mm) | 0.720" (18.30mm) | 0.378" (9.60mm) | 0.535" (13.60mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
