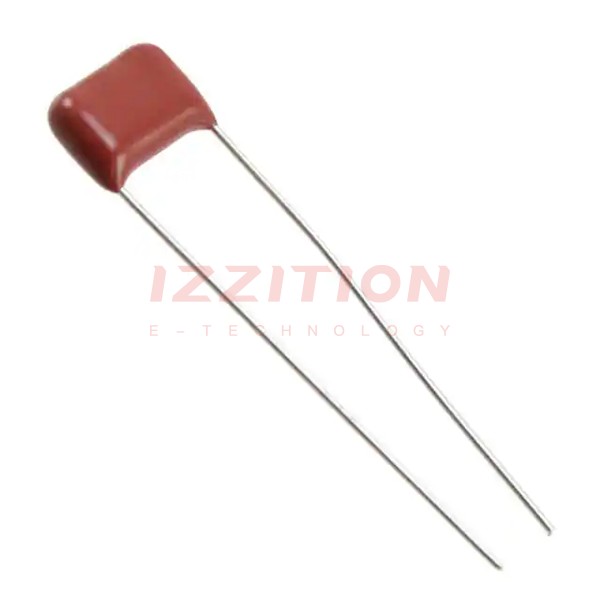

| Part Number | ECQ-E2683JFB | ECQ-E2683KFB | ECQ-E2683JFW | ECQ-E2684JFB | ECQ-E2685JFB | ECQ-E2683JB | ECQ-E2683JBB | ECQ-E2683JF | ECQ-E2683JF3 | ECQ-E2683JF9 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.068 µF | 0.068 µF | 0.068 µF | 0.68 µF | 6.8 µF | 0.068 µF | 0.068 µF | 0.068 µF | 0.068 µF | 0.068 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | 125V | - | 150V | - | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.311" L x 0.201" W (7.90mm x 5.10mm) | 0.311" L x 0.201" W (7.90mm x 5.10mm) | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.406" L x 0.177" W (10.30mm x 4.50mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.728" (18.50mm) | 1.079" (27.40mm) | 0.354" (9.00mm) | 0.512" (13.00mm) | 0.335" (8.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.886" (22.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
