ECQ-E2564KS
  • Share:

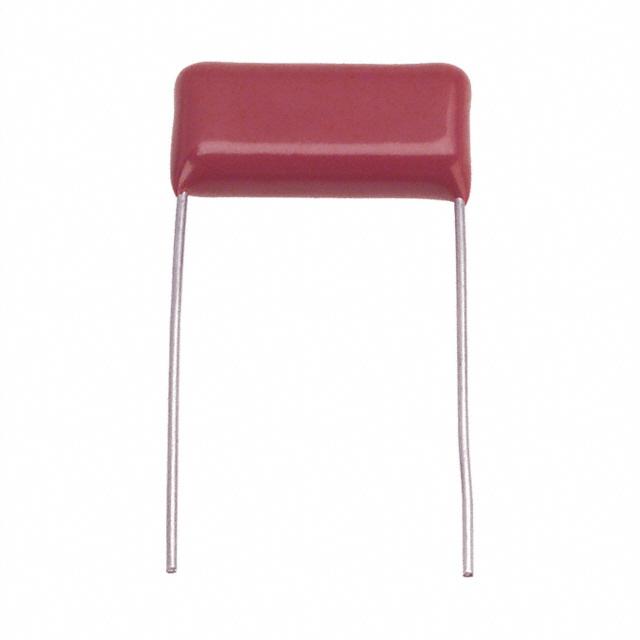

Panasonic Electronic Components ECQ-E2564KS

Manufacturer No:
ECQ-E2564KS
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
ECQ-E2564KS Datasheet
ECAD Model:
-
Description:
CAP FILM 0.56UF 10% 250VDC RAD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:0.56 µF
Tolerance:±10%
Voltage Rating - AC:-
Voltage Rating - DC:250V
Dielectric Material:Polyester, Metallized
ESR (Equivalent Series Resistance):-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:Radial
Size / Dimension:0.906" L x 0.276" W (23.00mm x 7.00mm)
Height - Seated (Max):0.532" (13.50mm)
Termination:PC Pins
Lead Spacing:0.787" (20.00mm)
Applications:General Purpose
Ratings:-
Features:-
0 Remaining View Similar

In Stock

-
94

Please send RFQ , we will respond immediately.

Similar Products

Part Number ECQ-E2564KS ECQ-E2563KS   ECQ-E2564KB   ECQ-E2564KF
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Active Active
Capacitance 0.56 µF 0.056 µF 0.56 µF 0.56 µF
Tolerance ±10% ±10% ±10% ±10%
Voltage Rating - AC - - 125V 150V
Voltage Rating - DC 250V 250V 250V 250V
Dielectric Material Polyester, Metallized Polyester, Metallized Polyester, Metallized Polyester, Metallized
ESR (Equivalent Series Resistance) - - - -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 105°C -40°C ~ 105°C
Mounting Type Through Hole Through Hole Through Hole Through Hole
Package / Case Radial Radial Radial Radial
Size / Dimension 0.906" L x 0.276" W (23.00mm x 7.00mm) 0.492" L x 0.197" W (12.50mm x 5.00mm) 0.484" L x 0.264" W (12.30mm x 6.70mm) 0.728" L x 0.217" W (18.50mm x 5.50mm)
Height - Seated (Max) 0.532" (13.50mm) 0.354" (9.00mm) 0.508" (12.90mm) 0.551" (14.00mm)
Termination PC Pins PC Pins PC Pins PC Pins
Lead Spacing 0.787" (20.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.591" (15.00mm)
Applications General Purpose General Purpose General Purpose General Purpose
Ratings - - - -
Features - - - -
