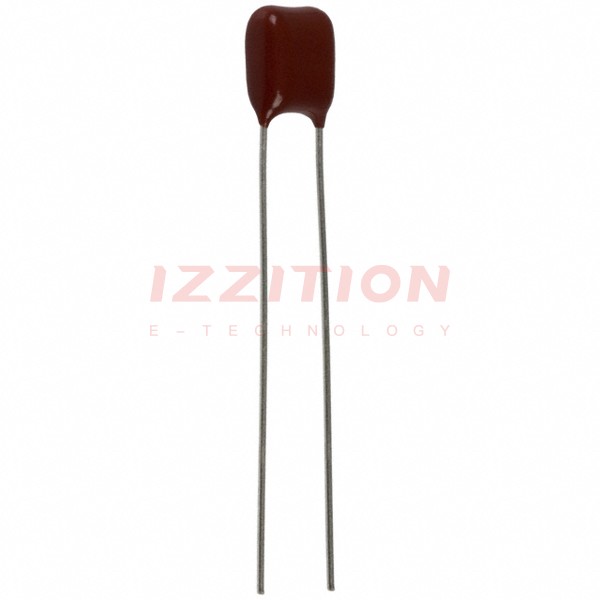

| Part Number | ECQ-E2563KB3 | ECQ-E2564KB3 | ECQ-E2563KBB | ECQ-E2563JB3 | ECQ-E2563KB |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.056 µF | 0.56 µF | 0.056 µF | 0.056 µF | 0.056 µF |
| Tolerance | ±10% | ±10% | ±10% | ±5% | ±10% |
| Voltage Rating - AC | - | - | - | - | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.311" L x 0.185" W (7.90mm x 4.70mm) | 0.484" L x 0.264" W (12.30mm x 6.70mm) | 0.311" L x 0.185" W (7.90mm x 4.70mm) | 0.311" L x 0.185" W (7.90mm x 4.70mm) | 0.311" L x 0.185" W (7.90mm x 4.70mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.665" (16.90mm) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.343" (8.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
