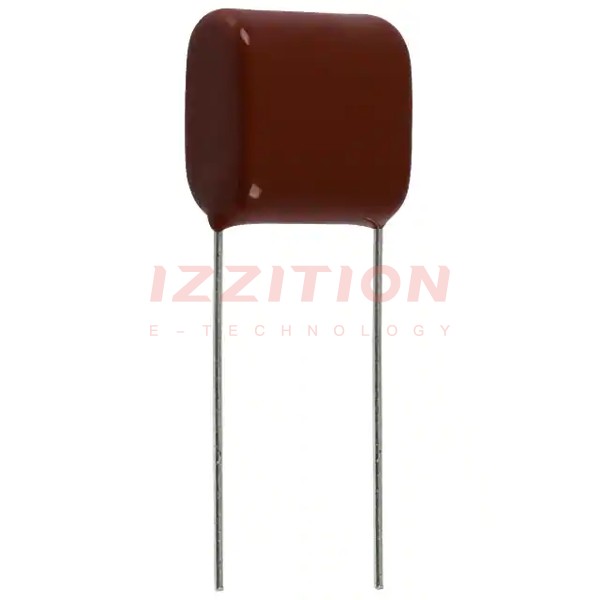

| Part Number | ECQ-E2475RJB | ECQ-E2475RKB | ECQ-E2474RJB | ECQ-E2475JB |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF | 0.47 µF | 4.7 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.819" L x 0.469" W (20.80mm x 11.90mm) | 0.819" L x 0.469" W (20.80mm x 11.90mm) | 0.484" L x 0.244" W (12.30mm x 6.20mm) | 0.819" L x 0.469" W (20.80mm x 11.90mm) |
| Height - Seated (Max) | 1.024" (26.00mm) | 1.024" (26.00mm) | 0.646" (16.40mm) | 0.866" (22.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.394" (10.00mm) | 0.689" (17.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
