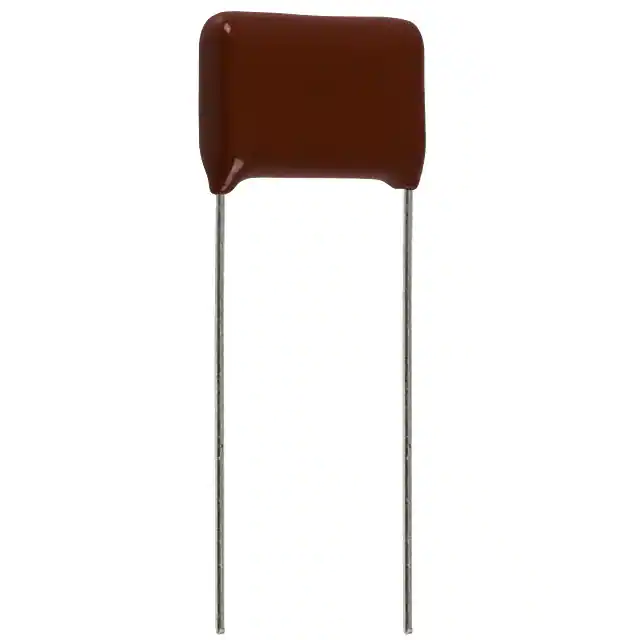

| Part Number | ECQ-E2394KF | ECQ-E2395KF | ECQ-E2394KFW | ECQ-E2394KFB | ECQ-E2394KF3 | ECQ-E2394RKF | ECQ-E2394KS | ECQ-E2334KF | ECQ-E2393KF | ECQ-E2394JF | ECQ-E2394KB |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Capacitance | 0.39 µF | 3.9 µF | 0.39 µF | 0.39 µF | 0.39 µF | 0.39 µF | 0.39 µF | 0.33 µF | 0.039 µF | 0.39 µF | 0.39 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% | ±10% |
| Voltage Rating - AC | 150V | 150V | - | - | - | - | - | 150V | 150V | 150V | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.193" W (18.50mm x 4.90mm) | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.728" L x 0.193" W (18.50mm x 4.90mm) | 0.728" L x 0.193" W (18.50mm x 4.90mm) | 0.728" L x 0.193" W (18.50mm x 4.90mm) | 0.728" L x 0.193" W (18.50mm x 4.90mm) | 0.906" L x 0.236" W (23.00mm x 6.00mm) | 0.472" L x 0.256" W (12.00mm x 6.50mm) | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.728" L x 0.193" W (18.50mm x 4.90mm) | 0.484" L x 0.224" W (12.30mm x 5.70mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.846" (21.50mm) | 0.669" (17.00mm) | 0.669" (17.00mm) | 0.669" (17.00mm) | 0.669" (17.00mm) | 0.492" (12.50mm) | 0.512" (13.00mm) | 0.335" (8.50mm) | 0.512" (13.00mm) | 0.469" (11.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.591" (15.00mm) | 0.787" (20.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - |
