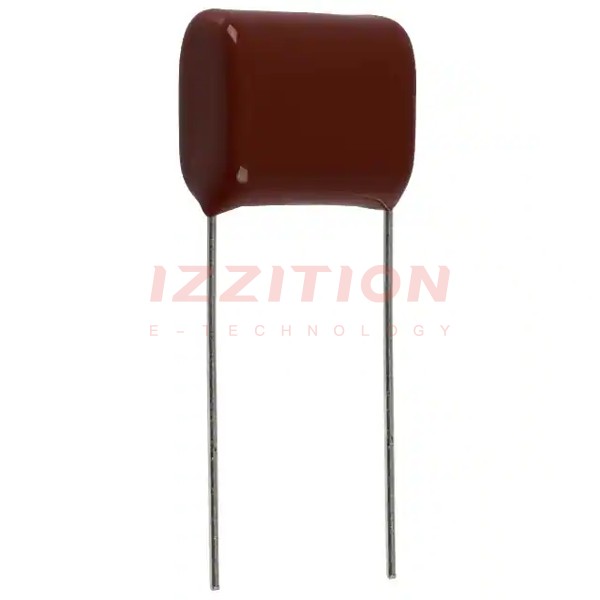

| Part Number | ECQ-E2335JBB | ECQ-E2335JFB | ECQ-E2335KBB | ECQ-E2395JBB | ECQ-E2333JBB | ECQ-E2335JB |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 3.3 µF | 3.3 µF | 3.3 µF | 3.9 µF | 0.033 µF | 3.3 µF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.819" L x 0.413" W (20.80mm x 10.50mm) | 1.024" L x 0.406" W (26.00mm x 10.30mm) | 0.819" L x 0.413" W (20.80mm x 10.50mm) | 0.819" L x 0.425" W (20.80mm x 10.80mm) | 0.311" L x 0.169" W (7.90mm x 4.30mm) | 0.819" L x 0.413" W (20.80mm x 10.50mm) |
| Height - Seated (Max) | 0.902" (22.90mm) | 0.906" (23.00mm) | 0.902" (22.90mm) | 0.976" (24.80mm) | 0.480" (12.20mm) | 0.744" (18.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.689" (17.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
