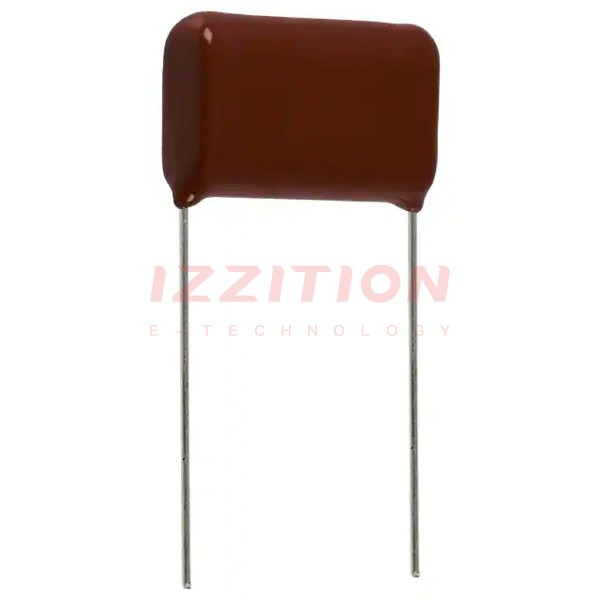

| Part Number | ECQ-E2275KFA | ECQ-E2275KFW | ECQ-E2275KFB | ECQ-E2274KFA | ECQ-E2275KF |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 2.7 µF | 2.7 µF | 2.7 µF | 0.27 µF | 2.7 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | 150V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.024" L x 0.370" W (26.00mm x 9.40mm) | 1.024" L x 0.370" W (26.00mm x 9.40mm) | 1.024" L x 0.370" W (26.00mm x 9.40mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 1.024" L x 0.370" W (26.00mm x 9.40mm) |
| Height - Seated (Max) | 0.709" (18.00mm) | 0.866" (22.00mm) | 0.866" (22.00mm) | - | 0.709" (18.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.886" (22.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
