Please send RFQ , we will respond immediately.

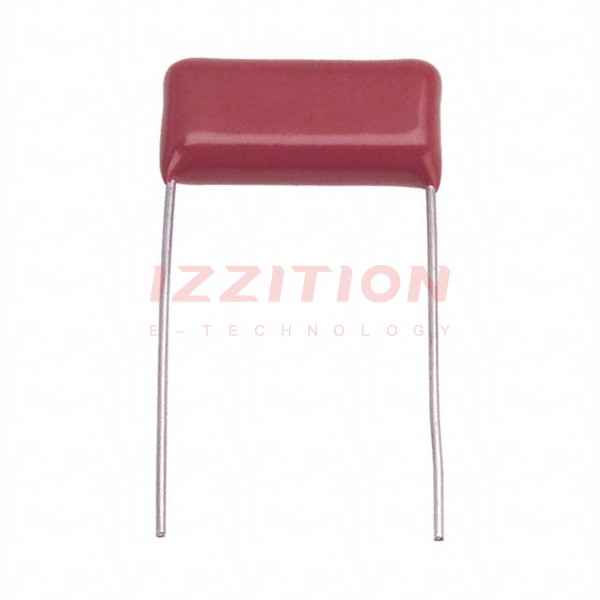

| Part Number | ECQ-E2274KS | ECQ-E2224KS | ECQ-E2273KS | ECQ-E2274KB | ECQ-E2274KF |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active |
| Capacitance | 0.27 µF | 0.22 µF | 0.027 µF | 0.27 µF | 0.27 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | 125V | 150V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.906" L x 0.217" W (23.00mm x 5.50mm) | 0.689" L x 0.217" W (17.50mm x 5.50mm) | 0.492" L x 0.197" W (12.50mm x 5.00mm) | 0.406" L x 0.232" W (10.30mm x 5.90mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.472" (12.00mm) | 0.354" (9.00mm) | 0.465" (11.80mm) | 0.492" (12.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.787" (20.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
