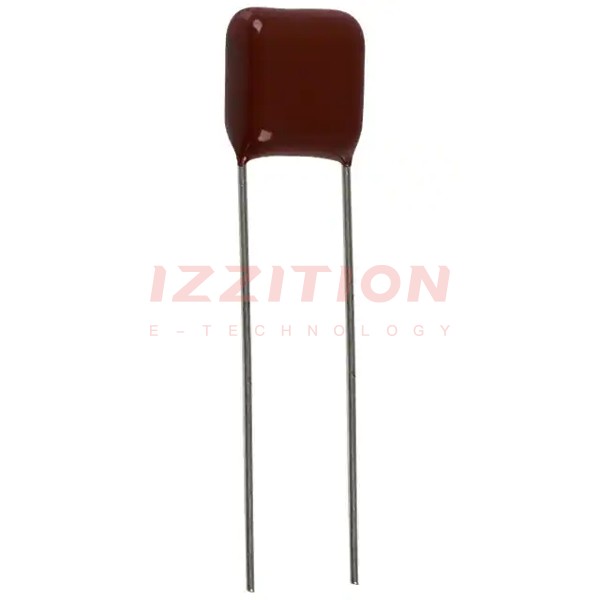

| Part Number | ECQ-E2274KB | ECQ-E2274KF | ECQ-E2275KB | ECQ-E2274KFB | ECQ-E2274KS | ECQ-E2224KB | ECQ-E2273KB | ECQ-E2274JB |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Capacitance | 0.27 µF | 0.27 µF | 2.7 µF | 0.27 µF | 0.27 µF | 0.22 µF | 0.027 µF | 0.27 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 125V | 150V | 125V | - | - | 125V | 125V | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.406" L x 0.232" W (10.30mm x 5.90mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.819" L x 0.366" W (20.80mm x 9.30mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.906" L x 0.217" W (23.00mm x 5.50mm) | 0.406" L x 0.213" W (10.30mm x 5.40mm) | 0.311" L x 0.169" W (7.90mm x 4.30mm) | 0.406" L x 0.232" W (10.30mm x 5.90mm) |
| Height - Seated (Max) | 0.465" (11.80mm) | 0.492" (12.50mm) | 0.697" (17.70mm) | 0.650" (16.50mm) | 0.453" (11.50mm) | 0.437" (11.10mm) | 0.323" (8.20mm) | 0.465" (11.80mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.689" (17.50mm) | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
