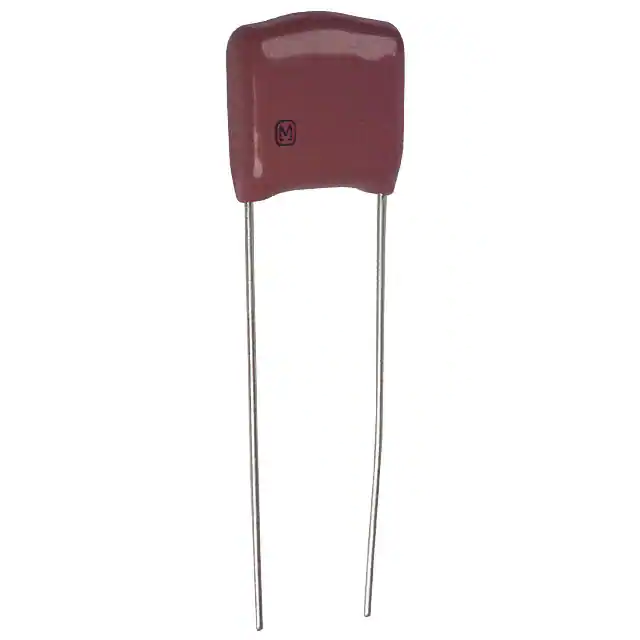

| Part Number | ECQ-E2274JF | ECQ-E2274KF | ECQ-E2275JF | ECQ-E2274JFW | ECQ-E2274JFB | ECQ-E2274JF3 | ECQ-E2274JF9 | ECQ-E2274RJF | ECQ-E2224JF | ECQ-E2273JF | ECQ-E2274JB |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.27 µF | 0.27 µF | 2.7 µF | 0.27 µF | 0.27 µF | 0.27 µF | 0.27 µF | 0.27 µF | 0.22 µF | 0.027 µF | 0.27 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 150V | 150V | 150V | - | - | - | - | - | 150V | 150V | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 1.024" L x 0.370" W (26.00mm x 9.40mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.406" L x 0.232" W (10.30mm x 5.90mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.709" (18.00mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.453" (11.50mm) | 0.335" (8.50mm) | 0.465" (11.80mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.886" (22.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - |
