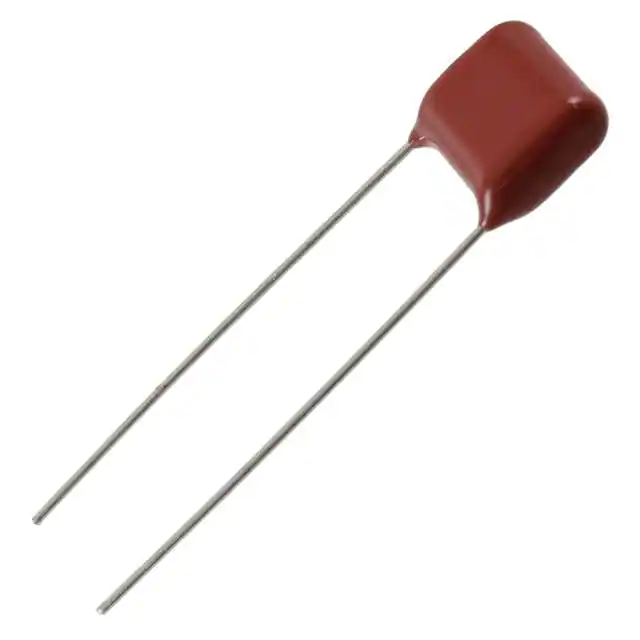

| Part Number | ECQ-E2224JFB | ECQ-E2224JFW | ECQ-E2274JFB | ECQ-E2225JFB | ECQ-E2223JFB | ECQ-E2224JB | ECQ-E2224JBB | ECQ-E2224JF | ECQ-E2224JF3 | ECQ-E2224JF9 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.22 µF | 0.27 µF | 2.2 µF | 0.022 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | 125V | - | 150V | - | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.406" L x 0.173" W (10.30mm x 4.40mm) | 0.406" L x 0.213" W (10.30mm x 5.40mm) | 0.406" L x 0.213" W (10.30mm x 5.40mm) | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
| Height - Seated (Max) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.650" (16.50mm) | 0.839" (21.30mm) | 0.492" (12.50mm) | 0.437" (11.10mm) | 0.594" (15.10mm) | 0.453" (11.50mm) | 0.610" (15.50mm) | 0.610" (15.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
